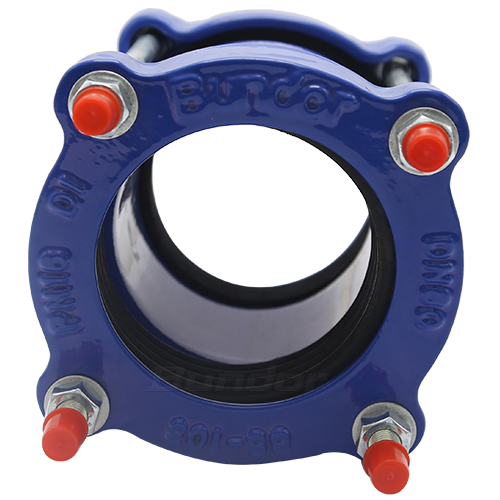

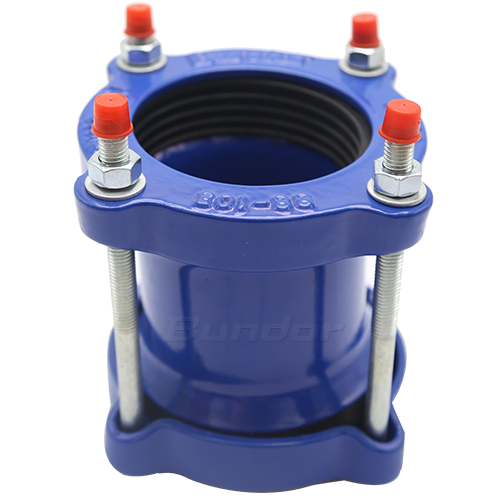

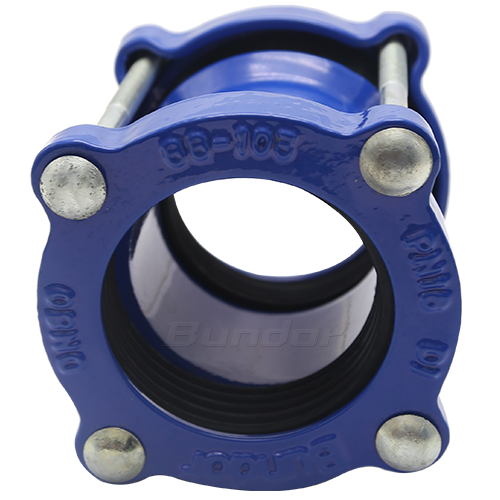

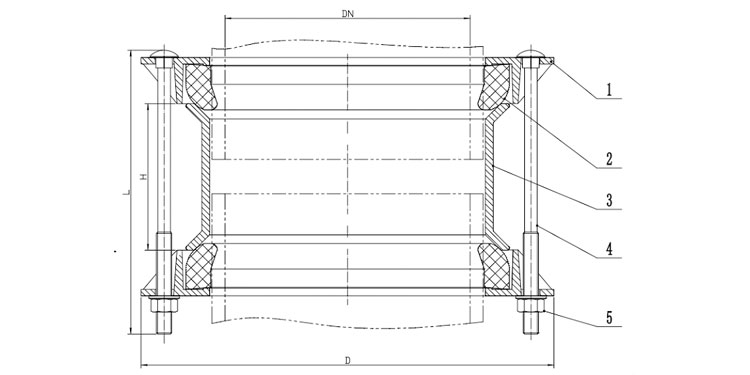

Nombre | 1-Glándula | 2-Junta goma | 3-Cuerpo | 4-Perno | 5-Tuerca | |
Materials | QT450-10 | EPDM | QT450-10 | 45# | 45# | |
Tamaño | Rango | DN | NPS | D | H | L |
DN50 59-73 | 59-73 | 50 | 2 | 160 | 100 | 200 |
DN65 72-85 | 72-85 | 65 | 2.5 | 171 | 100 | 200 |
DN80 88-103 | 88-103 | 80 | 3 | 186 | 100 | 200 |
DN100 108-128 | 108-128 | 100 | 4 | 211 | 100 | 200 |
DN125 132-154 | 132-154 | 125 | 5 | 245 | 100 | 200 |
DN150 159-182 | 159-182 | 150 | 6 | 277 | 100 | 200 |
DN175 192-209 | 192-209 | 175 | 7 | 305 | 100 | 200 |
DN200 218-235 | 218-235 | 200 | 8 | 323 | 100 | 200 |
DN250 246-270 | 246-270 | 250 | 10 | 385 | 100 | 200 |
DN250 271-289 | 271-289 | 250 | 10 | 385 | 100 | 200 |
DN300 315-332 | 315-332 | 300 | 12 | 437 | 150 | 200 |
DN300 322-340 | 322-340 | 300 | 12 | 437 | 150 | 200 |
DN350 374-391 | 374-391 | 350 | 14 | 495 | 150 | 260 |
DN400 417-437 | 417-437 | 400 | 16 | 532 | 150 | 260 |
DN450 470-485 | 470-485 | 450 | 18 | 597 | 150 | 260 |
DN450 480-500 | 480-500 | 450 | 18 | 597 | 150 | 260 |
DN500 526-546 | 526-546 | 500 | 20 | 643 | 150 | 260 |
DN600 630-650 | 630-650 | 600 | 24 | 747 | 150 | 260 |
